Product Overview

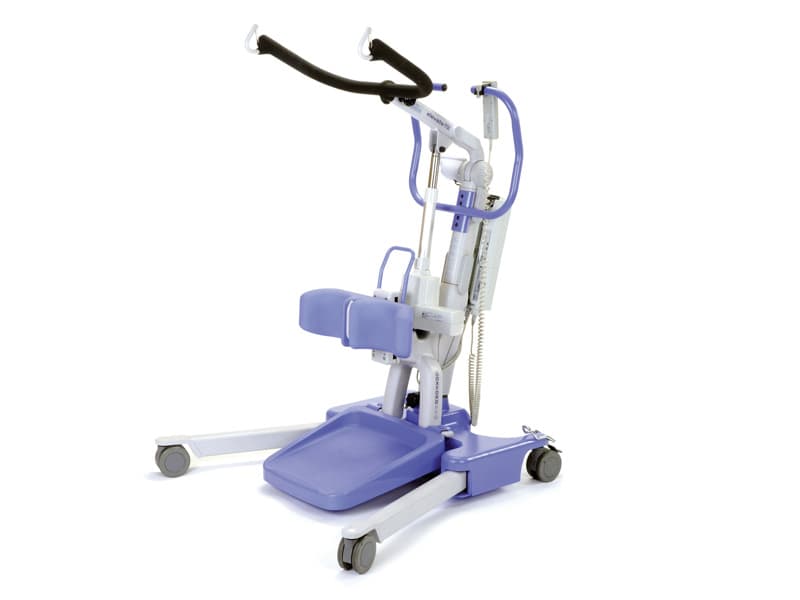

The Oxford Elevate is heavy-duty patient handling equipment designed to support safer sit-to-stand assistance for users weighing up to 200 kg. Its powered leg positioning helps carers approach chairs, beds and other transfer points, while the integrated Class III digital scale enables weight monitoring during the transfer process.
For bariatric patient handling, the height-adjustable knee pad, retractable safety belt and supportive foot tray help promote stability and comfort. When used with a compatible standing or transport sling, the hoist can assist with toileting, standing practice, point-to-point transfers and rehabilitation activities for clients who have been clinically assessed as suitable for supported standing.
The removable foot tray allows the Elevate to be configured for standing and walking practice, while removable covers support routine cleaning and infection-control procedures. This versatile patient transfer equipment is suitable for hospitals, rehabilitation services, aged care homes and supported home-care environments seeking reliable safe patient handling equipment.
Product Features
- Lightweight heavy duty mobile standing hoist
- Designed for domestic and institutional use
- Lightweight aluminium construction
- Ideal for toileting, standing, walking & point to point transfers
- Outstanding lifting range
- Superior ergonomic design
- Height adjustable contoured kneepad
- Removable foot tray for gait training
- Ergonomic lift arms enable multiple grip positions during lift
- Oversized push handle for greater manoeuvrability
- Powered leg adjustment
- 100mm castors
- Full selection of slings and accessories
- Features Linak actuators
- Emergency stop button
- 200kg safe working load
Product Specifications
| Item | Standing Hoist |
| Brand | Oxford |
| Model | Elevate |
| Base Length (mm) | 1040 |
| Base Width Adjustment (mm) | Electric |
| External Base Width Closed (mm) | 630 |
| External Base Width Open (mm) | 995 |
| Footplate | Removable |
| Internal Base Width Closed (mm) | 510 |
| Internal Base Width Open (mm) | 870 |
| Knee Pad | Height Adjustable |
| Max User Weight (kg) | 200 |
| Min Storage Height (mm) | 1230 |
| Under Base Height (mm) | 35 |
| Under Bed Clearance (mm) | 120 |
| Unit Weight (kg) | 62 |
| Max Height Lift Arm (mm) | 1644 |
| Min Height Lift Arm (mm) | 990 |
