Product Overview

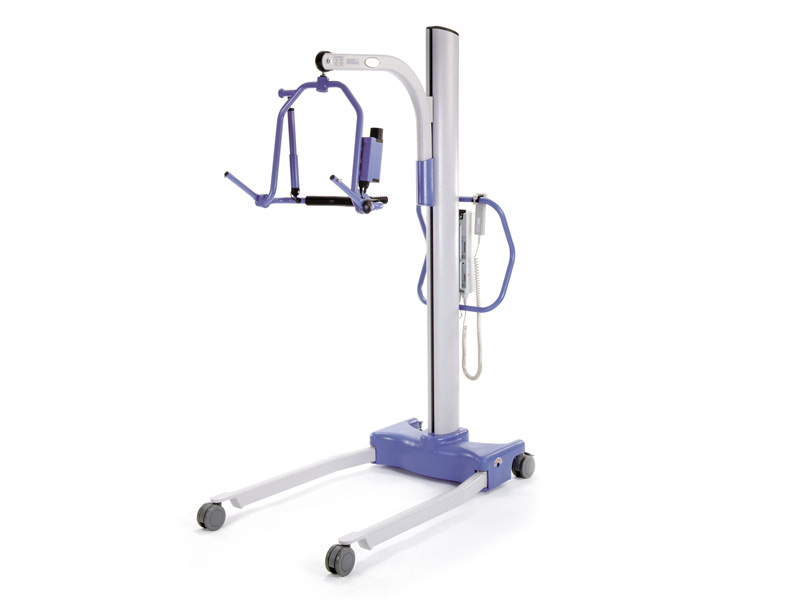

The Oxford Stature is high-capacity bariatric patient handling equipment designed for demanding transfers in acute and institutional care environments. Its 227 kg safe working load and extensive vertical lifting range support transfers between chairs, beds, floors and bathing equipment, including use around variable-height beds and specialised mattresses.
Powered leg positioning allows the base to open and close through the handset, while the swan-neck design helps carers approach wide wheelchairs, commodes and other obstacles. The four-point positioning cradle enables the user to be moved into seated or reclined orientations, reducing the need for manual repositioning during the transfer process.
The Securi3 sling-clip system helps prevent accidental sling detachment once correctly connected to the cradle. Interchangeable manual or powered cradles, a six-point spreader bar, stretcher attachment and digital weighing option make the Stature versatile patient transfer equipment for individualised handling plans and complex care needs.
Product Features
- Heavy duty medium sized mobile patient lifting hoist
- Designed for institutional and high capacity homecare use
- Lightweight aluminium construction
- Bariatric lifting capacity
- Large lifting range
- Greater spacial area for the carer and patient
- Unique push foot pad to initiate forward movement on difficult floor surfaces
- Four point positioning yoke standard
- Interchangeable spreader bar and pivot frame configuration
- Oversized push handle for greater manoeuvrability
- Powered leg adjustment
- 100mm castors
- Full selection of slings and accessories
- Features Linak actuators
- Emergency stop button
- 227kg safe working load
Product Specifications
| Item | Lifting Hoist |
| Brand | Oxford |
| Model | Stature |
| Base Length (mm) | 1290 |
| Base Width Adjustment (mm) | Electric |
| External Base Width Closed (mm) | 760 |
| External Base Width Open (mm) | 1360 |
| Hoist Reach at Max Height (mm) | 850 |
| Internal Base Width Closed (mm) | 640 |
| Internal Base Width Open (mm) | 1230 |
| Max Height Yoke (mm) | 1550 / 1975 |
| Max Hoist Reach (mm) | 850 |
| Max User Weight (kg) | 227 |
| Min Height Yoke (mm) | 390 / 675 |
| Min Hoist Reach (mm) | 850 |
| Min Storage Height (mm) | 1945 |
| Under Base Height (mm) | 30 |
| Under Bed Clearance (mm) | 110 |
| Unit Weight (kg) | 73.5 |
