Product Overview

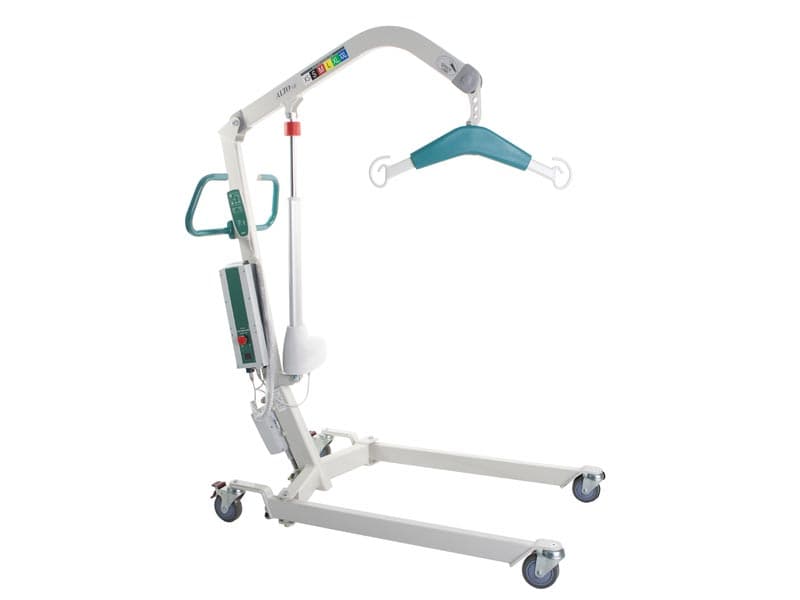

The Allegro Alto 200 is compact, heavy-duty patient handling equipment designed for full-body transfers from the floor, bed or chair. Its 200 kg safe working load supports higher-capacity and bariatric patient handling requirements across hospitals, rehabilitation services, aged care homes and supported home-care environments.
SPACELINK™ technology provides generous space around the user and enables 360-degree rotation at full lift height, helping carers position clients more efficiently during transfers. Electric leg adjustment allows the mobile base to accommodate different furniture and transfer points, making the Alto 200 practical patient transfer equipment for varied care routines.
The hoist can be configured with a standard padded spreader bar, pivot frame, tri-hook yoke, four-point yoke or optional weighing device to suit individual transfer plans and compatible slings. Its ergonomic design and powered LINAK components support controlled operation when safe patient handling equipment is required for routine or complex transfers.
Product Features
- Heavy duty medium sized mobile patient lifting hoist
- Designed for institutional and high capacity homecare use
- Durable steel construction
- SpaceLink® Technology
- Outstanding lifting range
- Optimised spacial area for carer and patient
- Enhanced floor lifting capability
- Interchangeable spreader bar and pivot frame configuration
- Ergonomically designed push handle

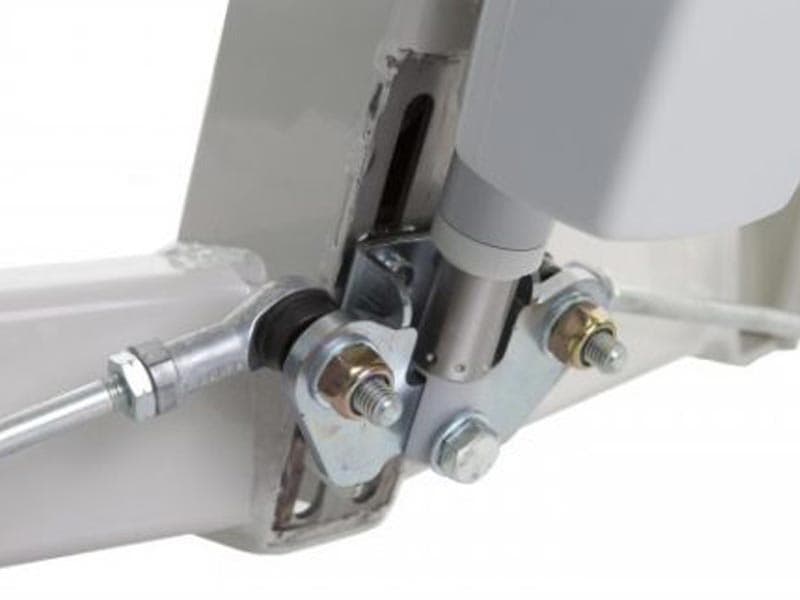

- Powered leg adjustment
- 100mm castors
- Full selection of slings and accessories
- Designed and tested to ASA ISO 10535-2002
- Australian made

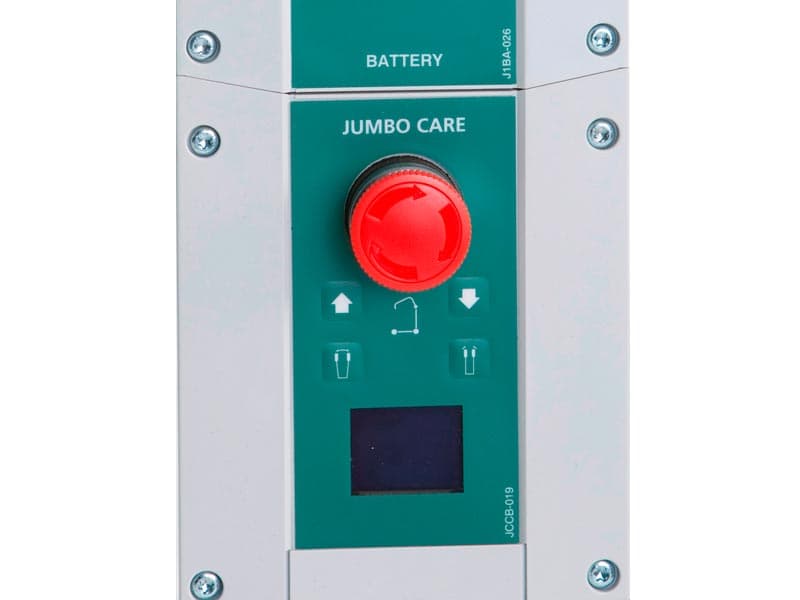

- Features Linak Jumbo Care advanced diagnostic control system
- Improved servicing schedule
- Anti-entrapment feature
- Emergency stop button
- 200kg safe working load
- Please note a yoke must be purchased separately
Product Specifications
| Item | Lifting Hoist |
| Brand | Allegro |
| Model | Alto 200 |
| Base Length (mm) | 1150 |
| Base Width Adjustment (mm) | Electric |
| External Base Width Closed (mm) | 700 |
| External Base Width Open (mm) | 1130 |
| Hoist Reach at Max Height (mm) | 515 |
| Internal Base Width Closed (mm) | 600 |
| Internal Base Width Open (mm) | 1030 |
| Max Height Yoke (mm) | 1920 |
| Max Hoist Reach (mm) | 1060 |
| Max User Weight (kg) | 200 |
| Min Height Yoke (mm) | 300 |
| Min Hoist Reach (mm) | 610 |
| Min Storage Height (mm) | 1350 |
| Under Base Height (mm) | 55 |
| Under Bed Clearance (mm) | 130 |
| Unit Weight (kg) | 46 |
| Warranty (months) | 60 |
