Product Overview

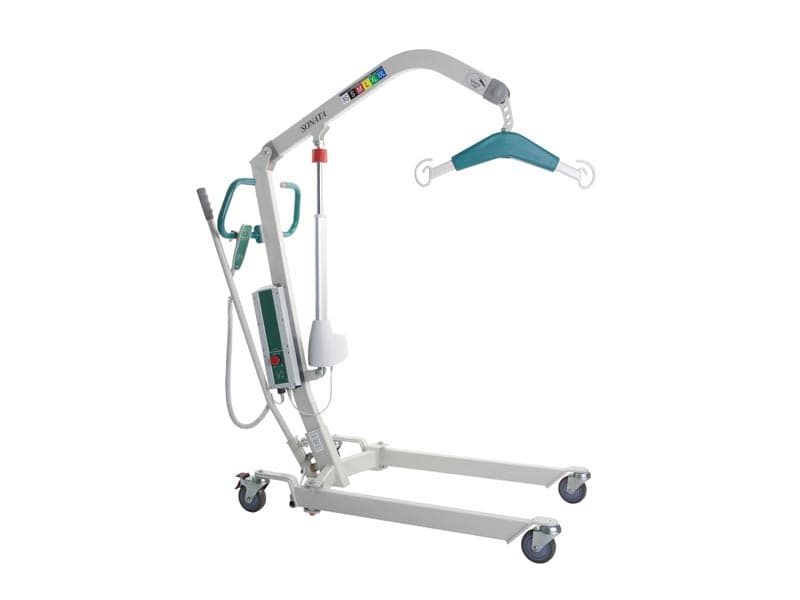

The Allegro Sonata 150 Manual Leg is compact patient handling equipment designed for full-body transfers in homes and care environments where space is limited. Its 150 kg safe working load and broad lifting range support transfers from the floor, bed or chair while maintaining a manageable footprint for everyday use.

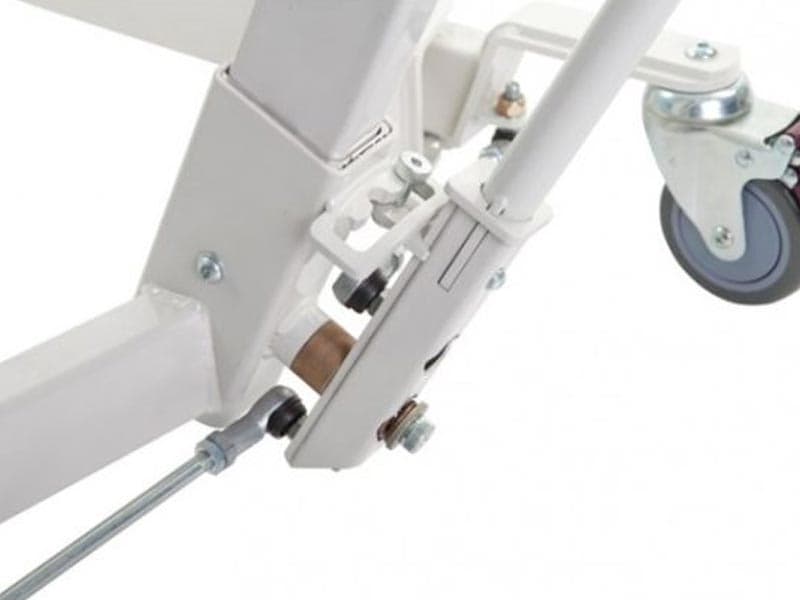

The three-position manual leg adjustment helps carers position the base around beds, wheelchairs and other furniture without relying on a powered leg mechanism. SPACELINK™ technology creates generous space around the user and permits 360-degree rotation at full lift height, supporting controlled alignment during transfers.
Compatible attachment options include a padded spreader bar, pivot frame, tri-hook yoke and four-point yoke, allowing the patient transfer equipment to be configured around the individual’s assessed sling and positioning requirements. An optional weighing device is also available, making the Sonata 150 a versatile safe patient handling equipment solution for home care, rehabilitation, hospitals and aged care homes.
Product Features
- Lightweight compact mobile patient lifting hoist
- Designed for domestic and institutional use
- Durable steel construction
- Space Link Technology
- Outstanding lifting range
- Optimised spacial area for carer and patient
- Enhanced floor lifting capability
- Interchangeable spreader bar and pivot frame configuration
- Ergonomically designed push handle
- Easy to use lever for leg adjustment
- 100mm castors
- Full selection of slings and accessories
- Designed and tested to ASA ISO 10535-2002
- Australian made

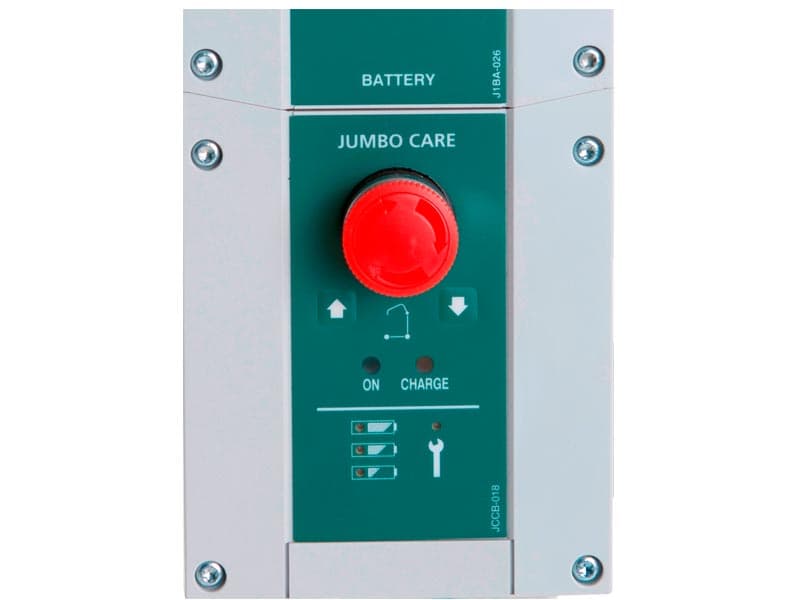

- Features Linak Jumbo Care advanced diagnostic control system
- Improved servicing schedule
- Anti-entrapment feature
- Emergency stop button
- 150kg safe working load
- Please note a yoke must be purchased separately
Product Specifications
| Item | Lifting Hoist |
| Brand | Allegro |
| Model | Sonata 150 |
| Base Length (mm) | 1005 |
| Base Width Adjustment (mm) | Manual |
| External Base Width Closed (mm) | 605 |
| External Base Width Open (mm) | 1070 |
| Hoist Reach at Max Height (mm) | 555 |
| Internal Base Width Closed (mm) | 510 |
| Internal Base Width Open (mm) | 975 |
| Max Height Yoke (mm) | 1735 |
| Max Hoist Reach (mm) | 875 |
| Max User Weight (kg) | 150 |
| Min Height Yoke (mm) | 420 |
| Min Hoist Reach (mm) | 555 |
| Min Storage Height (mm) | 1260 |
| Under Base Height (mm) | 55 |
| Under Bed Clearance (mm) | 130 |
| Unit Weight (kg) | 41 |
| Warranty (months) | 24 |
